When building a custom PC, it's best practice to ensure the mounting hardware and components comprise the same socket. Some listings may not consider the compatibility needed for motherboard and CPU sockets when looking for parts.
To help with this search, many noted compatibilities have been made accessible on sites like PC Part Picker, which offer insights into different CPU sockets or connection revisions. AMD and Intel work with motherboard manufacturers to determine if a new generation of CPU will stay with a current socket or move to a new one. Sometimes, there are exceptions, as the bandwidth required for DDR5 and PCIE 5.0 increases compared to previous generations' chipsets.
This guide will review how to determine CPU compatibility with your motherboard and essential considerations for matching performance with the motherboard's chipset.
Checking Your CPU & Motherboard
When looking to see if your motherboard is compatible with your CPU, you’ll want to look for a socket revision specifically—using the most recent releases of CPUs as an example. Intel sports the LGA 1700 Socket for all 12th, 13th, and 14th-generation CPUs. AMD follows suit with their current processor in the Zen 5, sporting an AM5 socket entirely different from their previous generation of CPUs.
Why CPU-Motherboard Compatibility is Important
While all CPUs in a generation have the same socket type, some motherboard chipsets and connected devices cannot fully utilize an installed CPU even if the system boots. Let's do another example with AMD CPUs: if you have a high-end X570 motherboard, launched in 2020, and an entry-level CPU like a Ryzen 5 1600x, launched in 2017, it will not allow the system to boot.
What Can Happen if You Insert an Incompatible CPU
So, are there sparks and flames if an incompatible CPU gets inserted into a motherboard? No, obviously. The system will refuse to boot and hold on to the CPU initialization, as it can't be recognized as a legitimate CPU on the board, depending on the outdated generation.
How to Know if a New CPU is Compatible with Your Motherboard
Much like the helpful chart above, manufacturers will provide beneficial graphs for what hardware will and will not be included. Some recent revisions stay up to date with a BIOS update; for others, the significant design differences between the CPU architecture and the chipset are too substantial to justify an update. The age of components and continued manufacturer support determine how long your gaming PC lasts and should be considered before upgrading a motherboard and/or CPU.
Steps to Take to Ensure a New CPU is Compatible
If you want to upgrade a CPU in your socket and generation preview, here are some helpful tips to stay ahead of the optimization requirements.
Check the Specs of Both the CPU & Motherboard

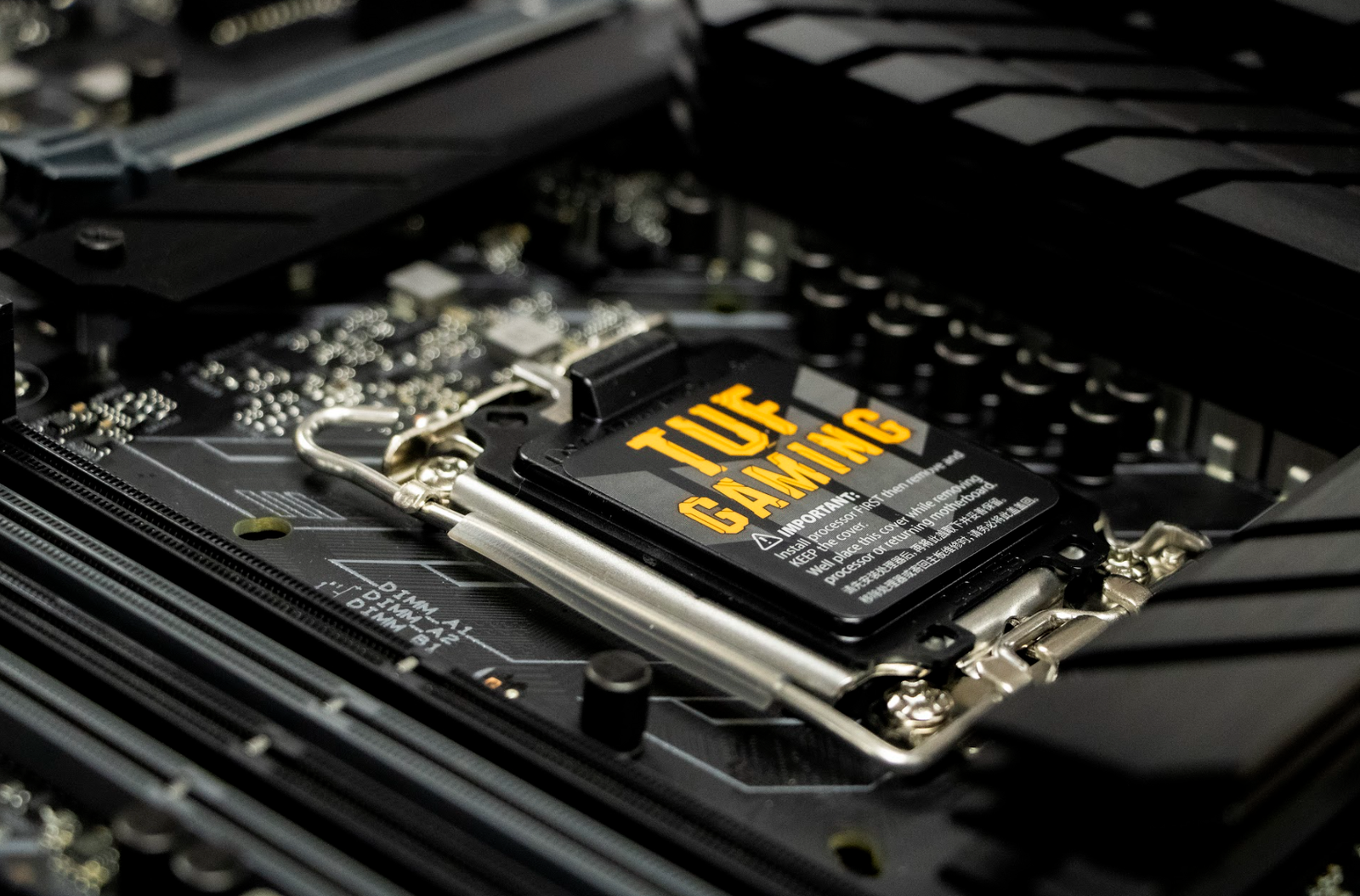

A motherboard’s CPU socket sizing is the most important when designing a system. Processors will have their socket type advertised along with motherboards with the corresponding CPU socket.
While a socket and CPU generation line up, understanding the expected performance of a CPU and utilities of the motherboard is essential; putting an Intel 12th generation i3-12100F on a Z690 motherboard is not a cohesive plan regarding anticipated performance.
Carefully Review User Manuals & Documentation for Both
It is an underutilized habit to check manuals when assembling PC parts you are unfamiliar with. Some installation methods are remarkably uniform across manufacturers utilizing stock or default back plates, while others approach mounting with proprietary mounting hardware.
Depending on how old the stock for some CPU coolers is, a conversion kit is often needed for old stock just after the release of a new generation of CPUs in a different socket. This notably happened when Intel moved from LGA 1200 to LGA 1700.
Get Help from Professionals
While this is the most obvious move for new builders, getting overwhelmed with advice on what to do for motherboards and CPUs is all too familiar.
A significant issue with some motherboards is that the BIOS version needs to be updated for newer CPUs, requiring a quick flash for the latest support. First-time builders often get scared when messing with BIOS settings. However, there are multiple tutorials on YouTube for motherboard-specific BIOS UI.
Upgrade to a New System
Depending on how old your system is, the need for a new CPU and motherboard will outweigh any additional upgrade that can be added to the system to increase performance and reduce bottlenecks.
A new custom-built gaming PC is often the best option once a manufacturer stops updating BIOS versions for specific models. The typical lifespan for most board revisions is between 5-8 years, leaving newer components needing essential BIOS support.
Summary of CPU and Motherboard Compatibility in Gaming PCs
The motherboard and the CPU are arguably two of the most essential components when it comes to the function of a gaming PC. The marketing surrounding motherboard socket compatibility is displayed at length for people looking to build their custom gaming PCs or opt for a prebuild company to do it for them.
On top of research and assembly, some hardware may need firmware updates to be compatible with each other. In the best-case scenario, the system will boot and be able to update. In the worst-case scenario, a motherboard will need an older-generation CPU to boot and update to the latest BIOS.
At Apex Gaming PCs, we do most of the heavy lifting regarding CPU/motherboard configurations and BIOS updates. Each PC is quality-controlled and tested with the latest up-to-date firmware and drivers from each manufacturer. Whatever your CPU and motherboard needs are, we hope to be of service at Apex!
